Brand Name : Hongjie
Model Number : HJ - PWGMP20T
Certification : ISO 14001,ISO 9001,CE,EPA
Place of Origin : Shenzhen,China
MOQ : 1set
Price : negotiation
Payment Terms : T/T
Supply Ability : >300sets/month
Delivery Time : 1-7working days(depand on raw materials stocking)
Packaging Details : export standard wooden case
Model : HJ - PWGMP20T
Flow rate : 250L-1000L/Hour
Processing : Pre-treatment+RO Desaliantion
Core Technology : two-stage Reverse Osmosis (RO)
Key Components : RO Membrane Modules
Operation Mode : Full Automatic (PLC-controlled) Warranty period
Application : Water Treatment Systerm
Material : Stainless steel
I. Description
Pretreatment of this machine has adopted stainles steel multimedia filter, active carbon filter to remove large size impurities and floating material effectively. Water input index of RO films is improved so that extraordinary smell and remaining chlorine of the raw water can be effectively removed, the taste quality of the water is therefore improved. The main machine has applies high effvientlow pressure compound films fron U.S.A., desalt rate of single film may reach as high as 99%. Over high or over low pressure protection facilities imported from Korea have been applied so that the problem rate of the facility is almost zero. High class standing type stainless pump form LOWALA, U.S.A. has been applied The medical material imput system from Midunlo, U.S.A. has been apply, the standard of supplg water fully reach the national standwrd for pure water.
Feature
The raw water (tap water, surface water, underground water) processed by pretreatment system, precision and high-pressure pump raw water through a reverse osmosis unit directly to the output of a single-stage reverse osmosis product water, this procedure called monopole reverse osmosis. Monopole reverse osmosis is suitable for conductivity less than 500us/cm of water quality, water conductivity 1-10 us/cm.
II. Parameters
| No. | Items | Function | Remark |
| 1 | Raw water tank | Store water, buffering pressure, overcome instability of supplying water in pipe |
Ready in local |
| 2 | Raw water pump /booster pump | Provide needed pressure for each pretreatment filter | CNP pump |
| 3 | Mechanical filter /quartz sand filter | Get rid of turbidity, suspended mater, organic matter, colloid etc. | FRP/ SS304 |
| 4 | Active carbon filter | Remove color, free chloride, organic matter, harmful matter etc. | FRP/SS304 |
| 5 | Resin softner /Na+ exchanger (If large output, it will be replaced by dosing pump) | Reduce hardness of raw water, get rid of Ca2+, Mg2+ etc. | FRP/SS304 |
| 6 | PP filter | Prevent large particles, bacteria, viruses into RO membrane, so that to extend life of the membrane | SS304 |
| 7 | High pressure pump | Provide high pressure to RO membrane | CNP pump |
| 8 | RO system | Remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc., harmful substances and 99% dissolved salts. |
III:Details Of Photoes:




|
|

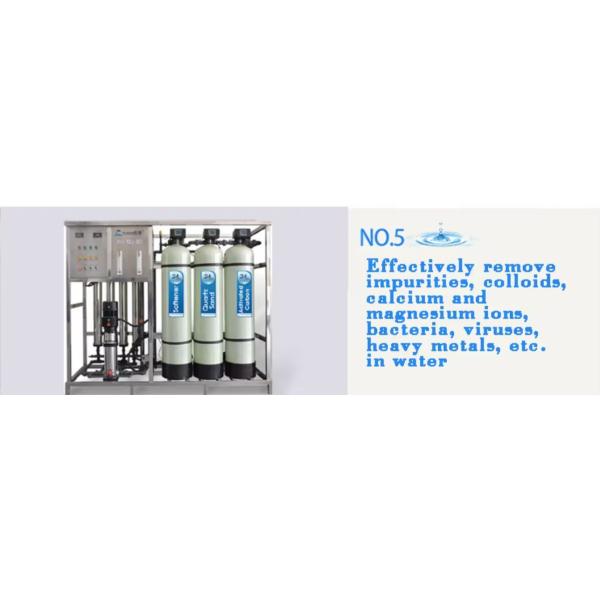

250L 500L 1000L Per Hour Pure Water Equipment With Pre Treatment And RO Desaliantion Images |
